MINIMAL HELICOID

Surfaces studied by Scherk in 1834.
Also called Scherk surfaces (see the other Scherk surfaces here), or helcats.
See Darboux p. 328.


Cartesian parametrization: .

The helicoids that are minimal surfaces have the above parametrization. They all are locally isometric to one another.
For a = 0, we get the catenoid, and for , the right helicoid.

The above parametrization comes from the Weierstrass parametrization of a minimal surface:, taking .

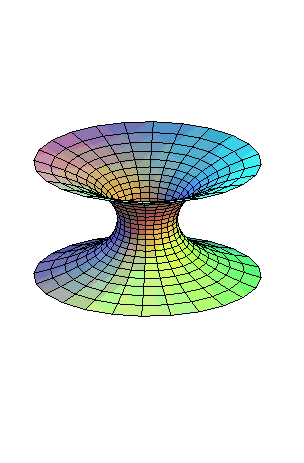

The minimal helicoids therefore vary depending only on their Bonnet angle ; and the animation above represents, in some way, a complex rotation of a right helicoid.


The coordinate line obtained for u = 0 in the above parametrization is a circular helix that is a geodesic of the minimal helicoid; the latter is therefore a Björling surface associated to a circular helix. In the case of the catenoid, the helix becomes a circle and in the case of the right helicoid, it becomes the axis.

The coordinate lines for constant v are catenoidal helices; they are generatrices of the helicoid. In the case of the catenoid, they become catenaries, and in the case of the right helicoid, lines perpendicular to the axis.
