SELFPARALLEL SURFACE, SURFACE OF CONSTANT WIDTH
1) Selfparallel surface.
A selfparallel surface is a connected surface parallel to itself (at a nonzero distance).
Examples:
 the sphere is selfparallel with
parallelism distance equal to its diameter.
 the surfaces parallel to a Mobius
strip are selfparallel.
See also the selfparallel curves.
2) Surface of constant width.
Other name: surface of constant thickness, spheroform
(surface).
Bibliography: Marc Roux, Ensembles gonfles en dimension n images.math.cnrs.fr/LetriangledeReuleaux.html T. Bayen, J.B. HiriartUrruty, Objets convexes de largeur constante (en 2D) ou d’epaisseur constante (en 3D) : du neuf avec du vieux. PhD thesis of T. Bayen
Given a compact convex K of the space, define its width in the direction of the line D as the length of the orthogonal projection of K on D, length which also is the smallest width of a strip orthogonal to D and containing K, or, which amounts to the same thing, the distance between two supporting planes of the convex K that are orthogonal to D.
The convex K is then said to be "of constant width" if this width does not depend on the direction D and a surface is said to be "of constant width" if it is the boundary of a compact convex set of constant width. Another way of defining the fact that K has constant width is that it can take all the different possible positions in the space delimited by two parallel planes so that the two planes always remain in contact with K.
The link with 1) comes from the fact that any convex (i.e. boundary of a convex compact set) selfparallel surface (with parallelism distance d) is a surface of constant width d.
Examples other than the sphere:
The surface of revolution generated by the rotation of a Reuleaux triangle around one of its axes of symmetry is a surface of constant width. More generally, any surface of revolution generated by a curve of constant width that has an axis of symmetry is of constant width.

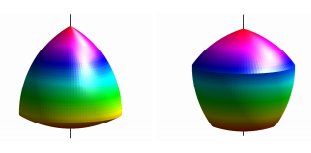

The Reuleaux
tetrahedron, composed of four portions of spheres centered on the
vertices of a regular tetrahedron is not a surface of constant width. The
distance between two points located at the middle of two opposite edges
is greater than the distance from a vertex to the opposite face.
But the Reuleaux tetrahedron can be modified to become a surface of constant width. See the Meissner solid.
