Gyroid

GYROID

Surface studied and named by A. H. Schoen in 1970.
Alan Hugh Schoen (1924-...): American Mathematician.
Websites:
English Wikipedia
Alan H. Schoen's page
meet the gyroid
Scherer's PhD thesis
bugman123.com/MinimalSurfaces/index.html

The gyroid is a triply periodic minimal surface the fundamental patch of which is reproduced opposite.
The two figures are based on the equation that gives a non-minimal surface close to the true gyroid.

The fundamental patch is composed of 8 isometric skew hexagons, six of which have a vertex at the center of the patch.

The complete gyroid separates the space into two isometric domains, like the Schwarz P surface.

Compare to the Neovius surface.

Gyroid intersected by a sphere, by Alain Esculier
Where?????

Similarities with the brain coral...
or with a shower flower brush...

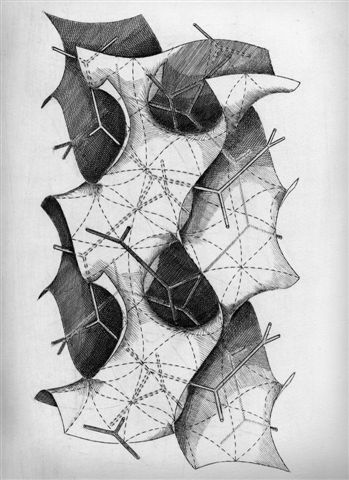

Engravings of gyroids with curvature lines and asymptotic lines, by Patrice Jeener, with its generous authorization.

next surface previous surface 2D curves 3D curves surfaces fractals polyhedra

The gyroid is a triply periodic minimal surface the fundamental patch of which is reproduced opposite. The two figures are based on the equation that gives a non-minimal surface close to the true gyroid.
The fundamental patch is composed of 8 isometric skew hexagons, six of which have a vertex at the center of the patch.
