LA HIRE LINE
Mechanism studied by Al
Tusi in 1272, Cardan in 1570, and La Hire in 1699.
Other names: gear, La Hire fly. Philippe de La Hire (1640-1718): French mathematician and astronomer. |
The La Hire line is the hypocycloid with two cusps, obtained when a circle rolls inside a circle with double radius, and that reduces to an ordinary, yet useful, segment of a line.
Here are Shaddocks trucks designed by
Alain
Esculier, using this property:
|
|
|
|
The points of the plane linked to the moving circle trace ellipses; see the page on glissettes. |
|
For other linear roulettes,
see wheel-road couple.

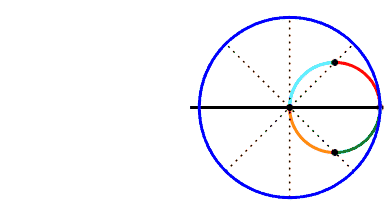

This animation uses the La Hire principle, we see it on the right. |
|
